2023 H&S Manufacturing Company, Inc. 5234 – 3400 GALLON 5234
Get in Touch
Description

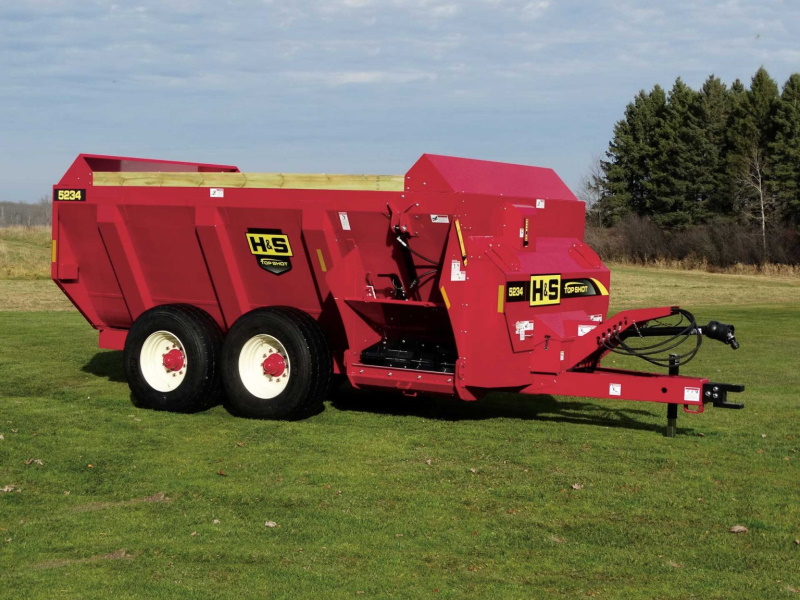

2023 H&S Manufacturing Company, Inc. 5234 – 3400 GALLON
Features may include:
The heavy-duty expeller system with a quick release poly-lined fine spread pan, and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.
- 40″ Wide “Top Shot” Expeller Beater
- 30″ Diameter Round Core Segmented Auger
- Heavy Duty Gearbox Reduction
- Overrunning Clutch /Torque Limiting Clutch
- Left Side Poly Lined Tank
- Front and Rear Splash Guards
- Flip-Over Adjustable Hitch
- Shear Bolt Protection
- The auger System hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.
- Automatic Chain Oiler System
- Highway Lighting System
- Remote Grease System
Info
Industry
Agriculture
Make
H&S Manufacturing Company, Inc.
Model
5234 – 3400 GALLON
Trim
5234
Year
2023
MSRP
N/A
Category
Spreader
Subcategory
General
Specs
Length
TANK: 16′ | OVERALL: 23′ 7″
Fuel Capacity
GALLON CAPACITY: 3377
Width
TANK WIDTH – TOP: 97″ | EXPELLER: 40″ | OVERALL: 126''
PTO Type
540 RPM Std. 1000 RPM Opt.
Weight
10,940
Height
SIDE LOADING: 95″ | FRONT SPLASH: 102″ | REAR SPLASH: 102″ | SIDE LOADING: 94″
Tires
w/21L X 16.1 Tires
