Agriculture Showroom

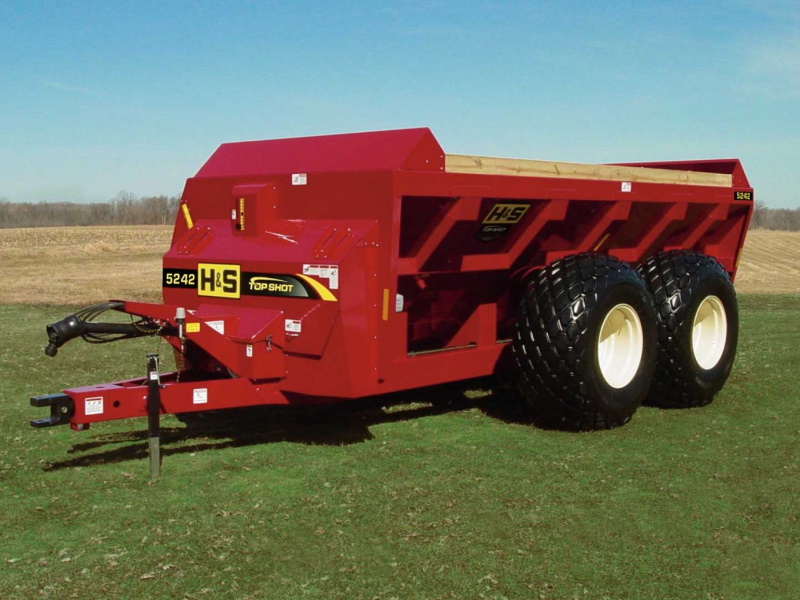

2023 H&S Manufacturing Company, Inc. 5242 – 4200 GALLON 5242
Get in Touch
Description
2023 H&S Manufacturing Company, Inc. 5242 – 4200 GALLON
Features may include:
The heavy-duty expeller system with a quick release poly-lined fine spread pan, and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.
- 40″ Wide “Top Shot” Expeller Beater
- 30″ Diameter Round Core Segmented Auger
- Heavy Duty Gearbox Reduction
- Overrunning Clutch /Torque Limiting Clutch
- Left Side Poly Lined Tank
- Front and Rear Splash Guards
- Flip-Over Adjustable Hitch
- Shear Bolt Protection
- The auger System hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.
- Automatic Chain Oiler System
- Highway Lighting System
- Remote Grease System
Info
Industry
Agriculture
Make
H&S Manufacturing Company, Inc.
Model
5242 – 4200 GALLON
Trim
5242
Year
2023
MSRP
N/A
Category
Spreader
Subcategory
General
Specs
Fuel Capacity
GALLON: 4200
Length
TANK: 20′ | OVERALL: 27′ 7″
Width
TANK WIDTH – TOP: 97″ | EXPELLER: 40″ | OVERALL: 125″
Weight
16,500
Tires
w/28L X 26 Tires
Height
SIDE LOADING: 93″ | FRONT SPLASH: 101″ | REAR SPLASH: 101″
Power/Horsepower
PTO Type
1000 RPM 1 ¾″ Std. or 1000 RPM 1 ⅜″ Opt.
